The Best Model Paints In The UK.

Welcome to the Phoenix Precision Paints website



Featured Products

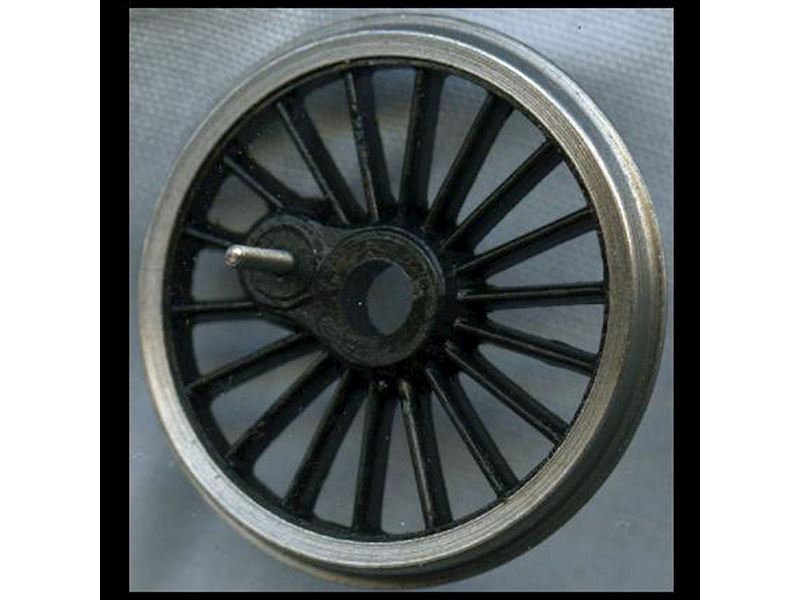

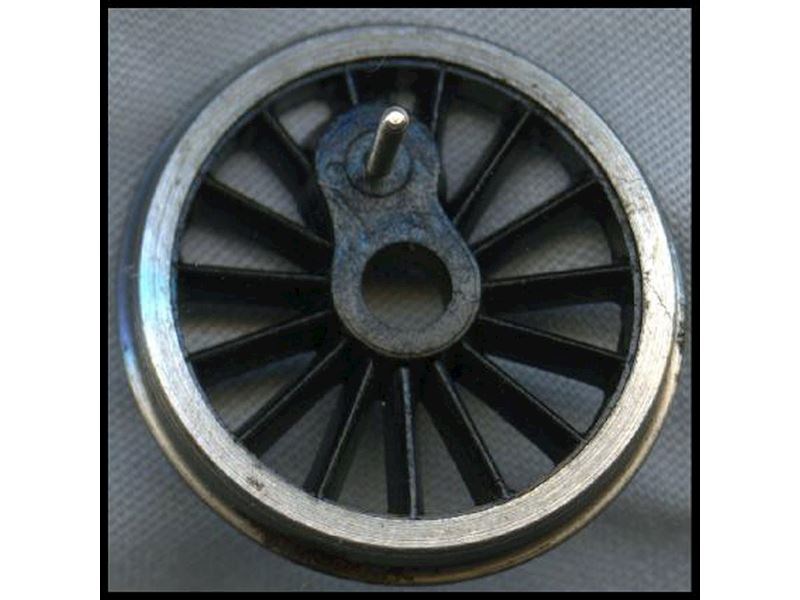

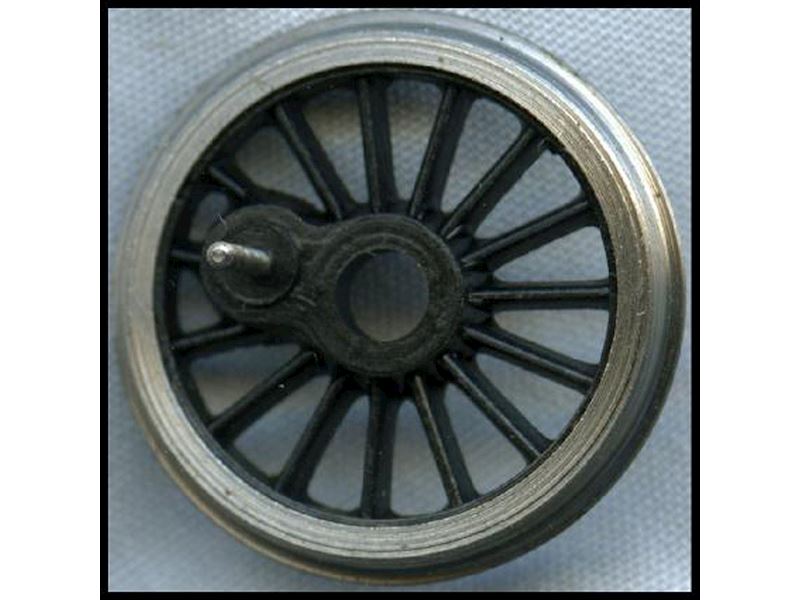

5' 0" 16 Spoke Driving Wheel

5' 0" 16 Spoke Driving Wheel

Crank Throw:         24"

Position:                 Inline

Rim:                       Plain

Prototype:              -

Quantity:                2 Wheels plus Axle

Axle Diameter:      1/8"

Tyre Material:        Plain Steel

Centre Material:    Glass Filled Nylon 6

The Original Sharman Wheels - Supplied in pairs with axle material which MAY require cutting to the length shown in the chart below.

ALL of the Sharman Wheels Diesets are extremely worn out and we reserve the right to withdraw any item without notice.

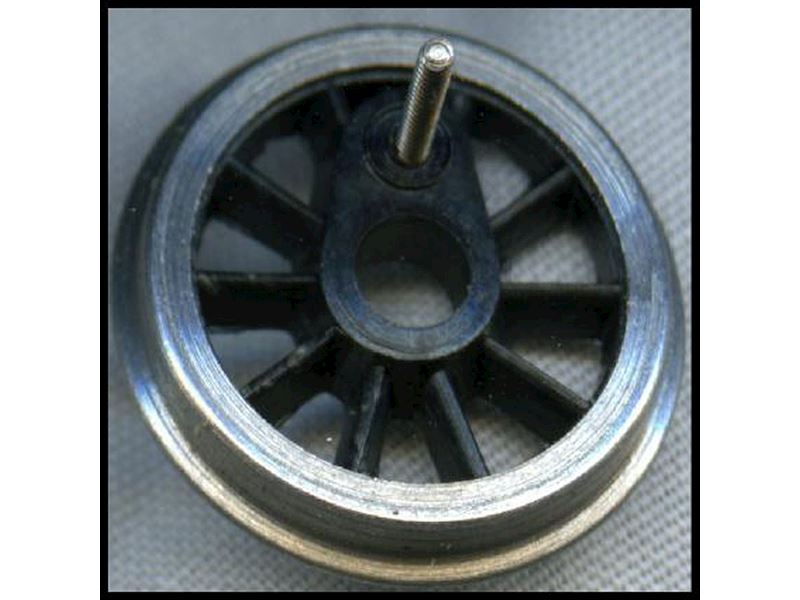

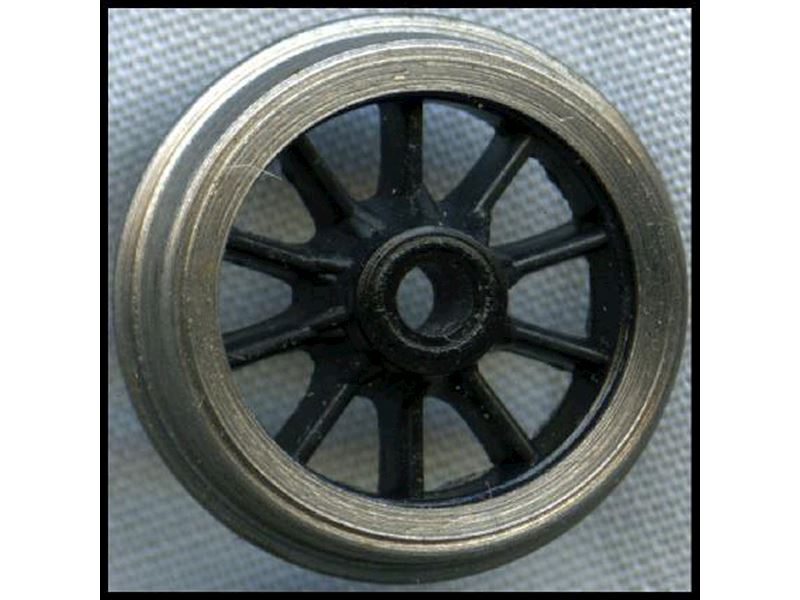

Available for OO, EM and S4 gauges our driving wheels  have black Glass Filled Nylon centres, moulded directly into a steel tyre which has been turned to the recommended profile for each gauge. During the turning of each tyre the opportunity is taken to turn a deep groove and an anti twist feature into the inside face, thus making it impossible for the tyres to fall off or twist on the centres.
During the moulding process a 14BA steel crankpin is encapsulated within the crankpin boss. Wheels are supplied with either  OO, EM or 18.83 axles (which unless stated is 1/8" diameter) together with nuts and bushes .

Crank Throw.  The total throw of the crank i.e.: wheel centre to crankpin x 2, this dimension will be the same as the stroke when it is an outside cylindered engine but could be different if it is an inside cylindered engine.

Pin. The crankpin position in relation to the spoke, Inline= Pin in line with the spoke, Between= Pin between the spokes.

Rim. This gives a description of the inner rim of the wheel, a plain rim is the standard type, whilst a bevel rim, or Stanier, denotes that the spokes are flared into a heavily bevelled rim. This type of wheel was fitted in the main to L.M.S. Locomotives and the B.R. standards

4' 9" - 5' 3"
£13.00
G.W.R. Stone Nº 1

Great Western Railway Stone Nº 1 as used for buildings up to 1948.

Stone Nº1 'Light Stone' was used on woodwork on awnings, including underside of awning or roof, but excluding mouldings on outside of awning edge.
External walls, door panels and barge boards of timber stations and window frames, cills, mullions, door panels and barge boards of brick built buildings were in Stone Nº 1

It should be noted that all of our GWR colours were matched to a privately preserved set of paint panels from Swindon Works. These not only had the colours, but the dates used and the names for each colour. Our understanding is that the panels had been signed by the CME for the period.



Technical Specifications

As supplied, a high quality synthetic (oil based) brushing enamel paint.

Stir thoroughly with a spatula (lollipop stick, wooden coffee stirer etc.) for a minimum of 5-10 minutes, or a power stirer. Ensure that you get into the bottom corners of the can and bring any sediment to the surface and stir in.

May be thined, if required, for brushing using PQ8 General Purpose Thinners.

For spraying, thin to approximately 80% paint:20% PQ9 Quick Air Drying Thinners and spray from between 75 - 100mm (3-4 inches) at a pressure of about 2 bar (30 p.s.i.).

Matt colours may require more thinning.

This product is best brushed or sprayed at a temperature of below 10° Centigrade ( 50°F). and left for a Minimum of 24 - 48 hours to dry before any overcoating or further actions are taken.

Apply over the top of a properly primed surface.

This Product Contains LEAD.







Please Note: Not all colours are available in all sizes.
Please see our disclaimer regarding colour and quantities below.

GWR
£3.85
G.W.R. Buildings Stone Nº 3

Great Western Railway Stone Nº 3 as used for buildings up to 1948.(Maroon Brown (P23) was introduced in 1931 and started to be used instead)

Stone Nº3 'Dark Stone' was used on Columns, roof girders,trusses ad ironwork, roof lights, window frames and associated woodwork, gutters, fallpipes, and panels attached to valences or end of awning or roof.
On timber stations all other frames of the building, doorframes window frames, mullions, window cills, gutters and down pipes were painted in Stone Nº 3, whilst on brick built buildings it was used for structural woodwork on the outside of the building, gutters and downpipes, doorframes and doors (except panels), wooden plinths at ground level and ironwork (eg bars on windows).
Window sashes and glass framing was white on all types of building.



Technical Specifications

As supplied, a high quality synthetic (oil based) brushing enamel paint.

Stir thoroughly with a spatula (lollipop stick, wooden coffee stirer etc.) for a minimum of 5-10 minutes, or a power stirer. Ensure that you get into the bottom corners of the can and bring any sediment to the surface and stir in.

May be thined, if required, for brushing using PQ8 General Purpose Thinners.

For spraying, thin to approximately 80% paint:20% PQ9 Quick Air Drying Thinners and spray from between 75 - 100mm (3-4 inches) at a pressure of about 2 bar (30 p.s.i.).

Matt colours may require more thinning.

This product is best brushed or sprayed at a temperature of below 10° Centigrade ( 50°F). and left for a Minimum of 24 - 48 hours to dry before any overcoating or further actions are taken.

Apply over the top of a properly primed surface.

This Product Contains LEAD.







Please Note: Not all colours are available in all sizes.
Please see our disclaimer regarding colour and quantities below.

GWR
£3.85

We started producing and selling precision paints in 1972


Since then we have had our ups and downs, have supplied British Railways, the National Railway Museum and various preservation societies but we still have, probably, the most accurate and extensive range of paints for the modeller of British Outline railways.

Since 2010 we have added to the variety of products we can offer the modeller, with kits, bits and pieces and now solders, fluxes and chemicals.





Our earliest model trains

About Phoenix Paints

Manufacturers and Suppliers of paint, Solder, Flux as well as associated Kits and bits and pieces for Railway, Military and Road Transport Models. The majority of our paint, whilst manufactured using the latest technology, is Traditional High Quality oil based paint formulated to original specifications to ensure your models always look their best. If you require sizes not listed on this website please contact us for pricing and availability. Please read our Disclaimer on colour accuracy and quantities/sizes.
